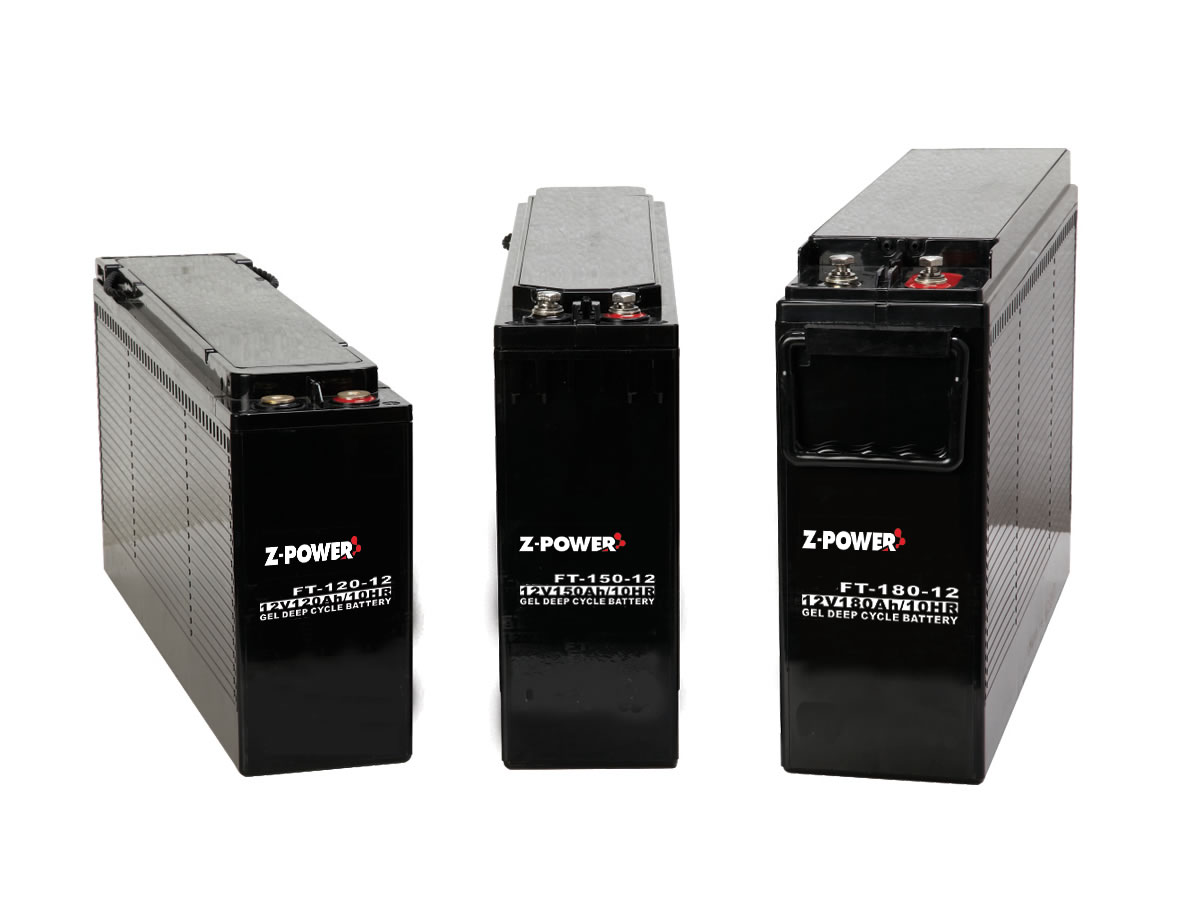

Gel Battery

Battery information

  • Category: Reserve Power
  • Type: Gel
  • Range: : 24~3000ah

Key Features

  • Long Life Span
  • Fast Charging
  • Ah efficiency of up to 90% and WH efficiency of up to 85
  • No Risk of Acid Spillage or Leakage
  • Suitable for Use in Extreme Environments
  • Non-Spillable Construction Design
  • Integrated Safety Valve
  • Low Self Discharge Characteristic

Description

Z Power Gel battery is engineered with the advanced GEL technology, high purity raw material, thick plate design, special grid alloy and paste formula to deliver uninterrupted power, longer lifespan, faster charging, higher efficiency, and enhanced safety.

Typical Applications
• Pumps systems
• Solar lighting systems
• Telecom station and power stations
• Solar/wind energy storage systems

Features

Our Gel battery has a design lifespan of up to 15 years at 25°C.
Our battery can charge faster than traditional batteries, due to its advanced charging technology.
With an Ah efficiency of up to 90% and WH efficiency of up to 85%, our battery provides more power for longer periods of time.
The Gel electrolyte makes our battery safer than traditional lead-acid batteries, with no risk of acid spillage or leakage.
Can operate in temperatures ranging from -20°C to 60°C, making it suitable for use in extreme environments.
Non-Spillable construction design.
Integrated Safety valve to provide safety against any kind of flame or spark.
Extra durability and deep cycle ability for heavy demand applications.
Low self discharge characteristic.
Flexibility design for multiple install positions.

Specifications
Voltage Capacity (Ah) Dimension L (mm) Dimension W (mm) Dimension H (mm) Dimension H (over terminal) (mm) Weight (±2%) (kg) Terminal
6 36 162 89 163 175 5.55 F10
6 150 260 180 246 252 25.5 T24
6 160 299 172 227 231 25.7 T54
6 180 306 168 220 226 27.6 T18
6 200 322 178 225 231 30 T18
6 220 260 180 265 271 31.9 T24
12 33 196 130 154 170 10.1 T66
12 40 197 166 169 169 12.3 T68
12 45 197 166 169 169 13.7 T68
12 50 230 140 207 211 15.7 T73
12 55 230 140 207 211 16.5 T73
12 60 350 167 173 173 19 T11
12 65 350 167 173 173 20 T11
12 70 260 168 212 216 22.5 T12
12 75 260 168 212 216 23.5 T12
12 80 333 173 216 223 25.7 T13
12 90 307 168 211 215 26.7 T25
12 100 333 173 216 223 30.3 T13
12 120 406 173 209 237 35.5 T22
12 135 341 172 281 287 41.6 T18
12 150 485 170 240 240 44 T23
12 180 523 239 218 222 57.3 T41
12 200 523 239 218 222 60.3 T41
12 220 520 268 220 224 69 T24
12 250 520 268 220 224 73 T24
12 50 291 106 223 231 15.3 T07
12 55 291 106 223 231 16.4 T07
12 70 562 115 187 196 22 T28
12 75 562 115 187 196 23.5 T28
12 80 562 115 187 196 24.7 T28
12 100 410 110 287 295 31 T27
12 100 508 110 224 232 30.5 T22
12 110 394 110 286 286 33 T46
12 120 552 110 240 240 35 T28
12 125 566 110 288 296 40 T17
12 140 566 110 288 296 42.5 T17
12 150 566 110 288 296 44.7 T17
