Product Information
- Category: ESS
- Type: LiFePo4
- Range: : 100Ah to 400Ah
Key Features
- Long Lifespan and High Safety
- Intelligent Management
- Scalable Connectivity
- Cost-Effectiveness
- Fast Charging
- App-Based Monitoring
Description

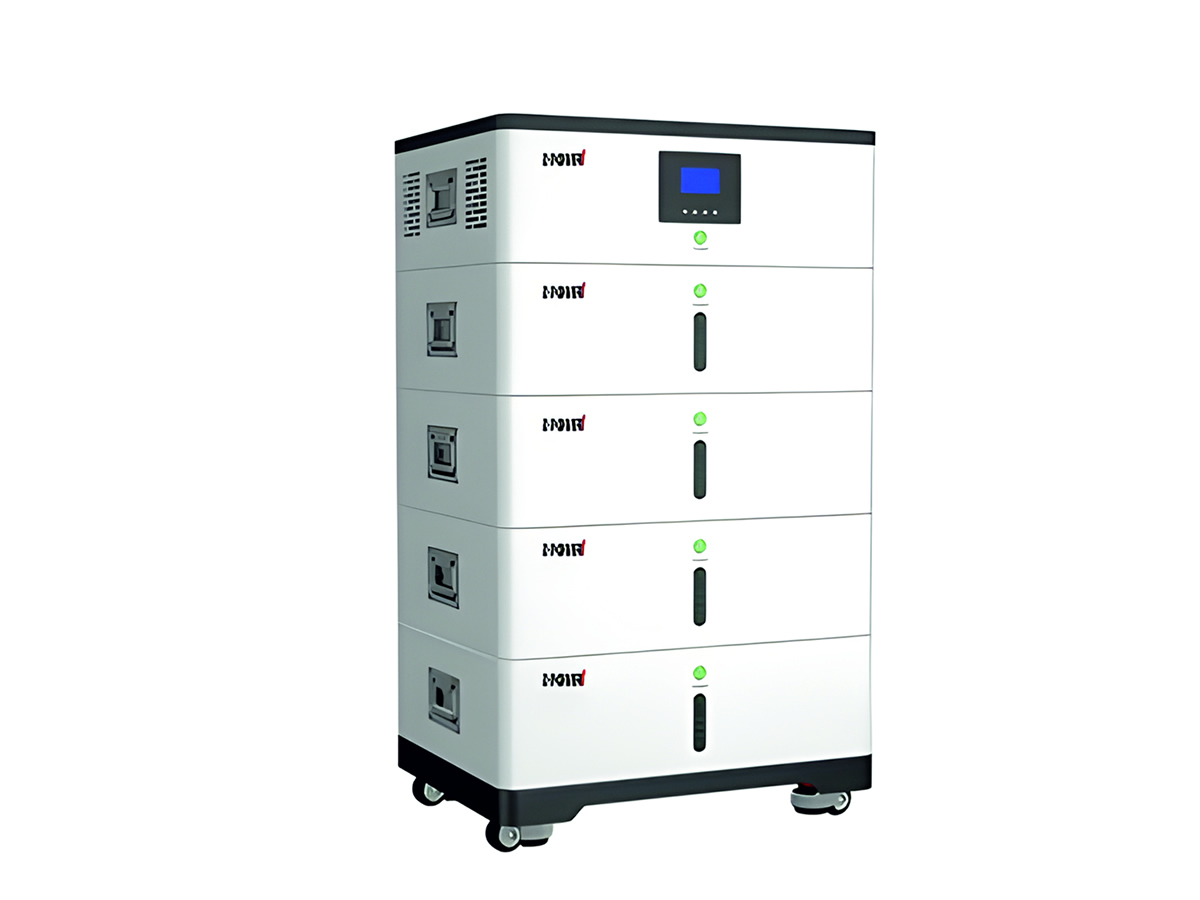

Introducing our comprehensive household energy storage solution ZPS20000 equipped with a robust 20KWh LiFePO4 battery and a 5.5-10KW pure sine wave inverter. Designed to ensure uninterrupted power supply for your most essential and critical electronics, this all-in-one system provides the energy reliability whenever you need it.
Long Lifespan and High Safety
Equipped with LFP batteries that last over 10 years with over 6000 cycles.
Intelligent Management
Each battery pack comes with a BMS system that manages power output intelligently and efficiently.
Powerful Features
Enables photovoltaic charging, load matching, remote energy scheduling, and provides an emergency power supply in the event of power outage.
Cost-Effectiveness
Integrates inverter and battery system for lower cost, higher power quality and improved energy efficiency.
Features:
- Scalable Connectivity: Our system supports up to 15 parallel connections, ensuring ample capacity for your expanding energy needs.
- Fast Charging: rapid charging capabilities, allowing you to quickly Charge the battery for uninterrupted power supply.
- Effortless Installation: With a focus on user convenience, our system is designed for easy setup, minimizing installation time and complexity.
- Portability: Flexibility of easily moving the ESS system as needed, facilitating convenient relocation or reconfiguration.
- App-Based Monitoring: Stay connected and in control with our intuitive app, enabling seamless monitoring of your system from anywhere.
- On-Grid & Off-Grid Compatibility: Whether you're connected to the grid or operating off-grid, our ESS solution offers optimum performance to meet your requirements.
Technical Specifications - ZPS20000
Item Description | ZPS-20000-SN2 | ZPS-20000-SN3 | ZPS-20000-SN4 |
---|---|---|---|
Battery Module | 2 | 3 | 4 |
Battery Energy (kWh) | 10.24 | 15.36 | 20.48 |
Battery Capacity (Ah) | 200 | 300 | 400 |
Battery Weight (Kg) | 110 | 160 | 210 |
Dimension L x D x H(mm) | 600x300x660 | 600x300x700 | 600x300x1020 |
Battery Type | LiFePo4 | LiFePo4 | LiFePo4 |
Battery Rated Voltage (V) | 51.2 | ||
Battery Working (V) Range | 42-58.4 | ||
Max Charging Current (A) | 100 | ||
Max Discharging Current (A) | 100 | ||
Depth Of Discharge (DOD) | 95% | ||
Parallel Quantity | 15 | ||
Design Life Span | 6000 |
Item Description | European Regulations | American Regulations | |||
PV Charge | |||||
Solar Charge Type | MPPT | ||||
Max Output Power(kW) | 5.5 | 6.2 | 8 | 5 | 10 |
PV Charging Current Range(A) | 80 | 120 | 80 | 80 | 200 |
PV Operating Voltage Range | Max 500 VDC | ||||
MPPT Voltage Range | 120-450 VDC | ||||
AC Charge | |||||
Max Charge Power(kW) | 5.5 | 6.2 | 8 | 5 | 10 |
Ac Charging Current Range(A) | ≤40A | ≤40A | ≤60A | ≤40A | ≤80A |
Rated Input Voltage | 230VAC | 120VAC | |||
Input Voltage Range | 170-280V AC | 90-140V AC | |||
AC Output | |||||
Rated Output Power(kW) | 5.5 | 6.2 | 8 | 5 | 10 |
Frequency | 50Hz | 60Hz | |||
General Data | |||||
Communication | RS485/CAN/WIFI | ||||
Operating Humidity | 5%~85% | ||||
Ingress Protection Rating | IP55 | ||||
Certification | UN38.3,MSDS,IEC,CE,RoHS |

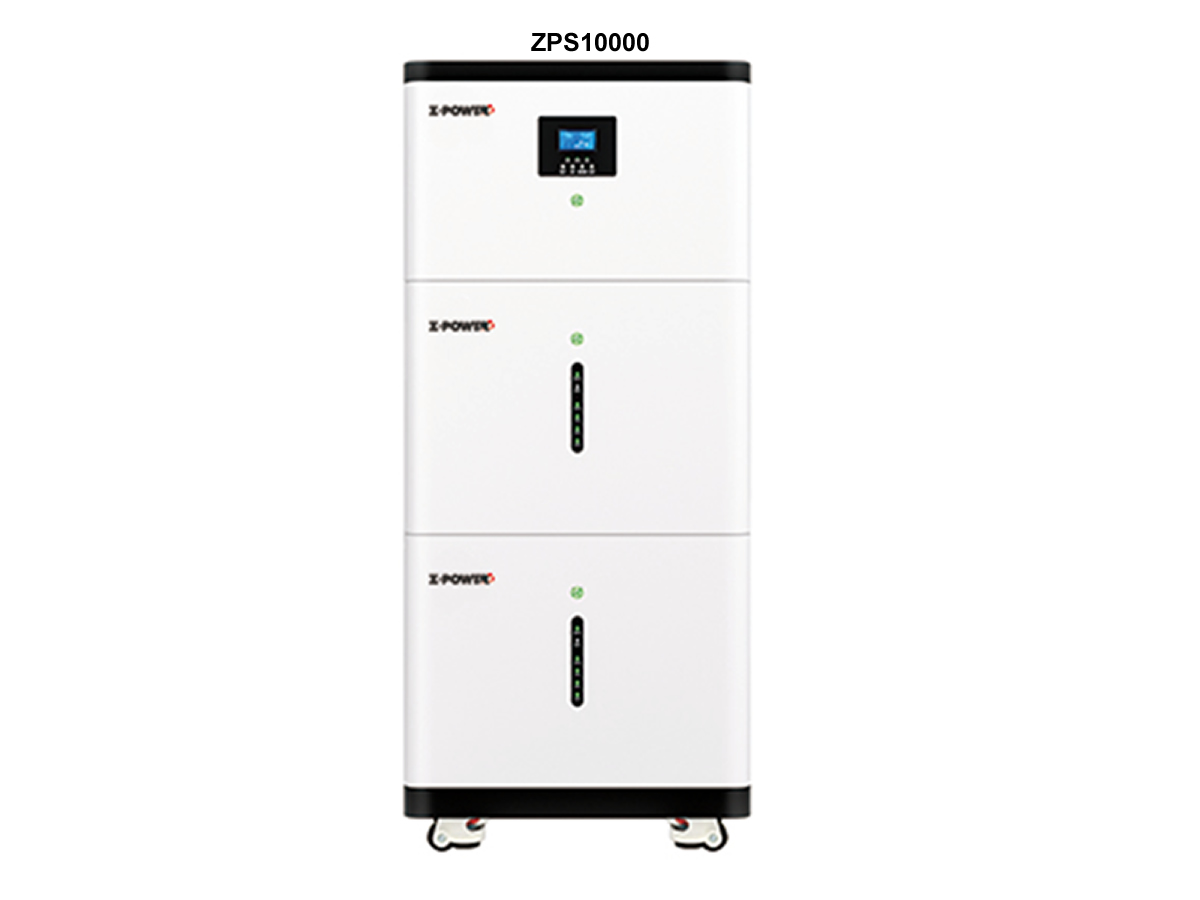

Technical Specifications - ZPS10000
ITEM DESCRIPTION | ZPS-10000-SN1 | ZPS-10000-SN2 | ZPS-10000-SN3 |
Battery Module | 1 | 2 | 3 |
Battery Energy (kWh) | 5.12 | 10.24 | 15.36 |
Battery Capacity (Ah) | 100 | 200 | 300 |
Battery Weight (Kg) | 70 | 120 | 170 |
Dimension L x D x H(mm) | 580x260x900 | 580x260x1320 | 580x260x1740 |
Battery Type | LiFePo4 | LiFePo4 | LiFePo4 |
Battery Rated Voltage (V) | 51.2 | ||
Battery Working (V) Range | 42-58.4 | ||
Max Charging Current (A) | 100 | ||
Max Discharging Current (A) | 100 | ||
Depth Of Discharge (DOD) | 95% | ||
Parallel Quantity | 1~15 | ||
Design Life Span | 6000 |
Item Description | European Regulations | American Regulations | |||
PV Charge | |||||
Solar Charge Type | MPPT | ||||
Max Output Power(kW) | 5.5 | 6.2 | 8 | 5 | 10 |
PV Charging Current Range(A) | 80 | 120 | 80 | 80 | 200 |
PV Operating Voltage Range | Max 500 VDC | ||||
MPPT Voltage Range | 120-450 VDC | ||||
AC Charge | |||||
Max Charge Power(kW) | 5.5 | 6.2 | 8 | 5 | 10 |
Ac Charging Current Range(A) | ≤40A | ≤40A | ≤60A | ≤40A | ≤80A |
Rated Input Voltage | 230VAC | 120VAC | |||
Input Voltage Range | 170-280V AC | 90-140V AC | |||
AC Output | |||||
Rated Output Power(kW) | 5.5 | 6.2 | 8 | 5 | 10 |
Frequency | 50Hz | 60Hz | |||
General Data | |||||
Communication | RS485/CAN/WIFI | ||||
Operating Humidity | 5%~85% | ||||
Ingress Protection Rating | IP55 | ||||
Certification | UN38.3,MSDS,IEC,CE,RoHS |
